Ethereum and Solidity: The Complete Developer's Guide - 6장

bonschicken 2024. 11. 6. 10:46

728x90

이제 계약 소스인데 실제로 어떻게 배포 해야하는지 알아야 합니다.

배포에는 다양한 옵션이 있습니다.

계약 생성에 도움을 줄 수 잇는 명령어 도구인 트러플로 할 예정입니다

이제 새로운 프로젝트을 생성해서 만들어 볼려고 합니다. 프로젝트에서 파일 구조는 아래와 같습니다

Inbox.sol 파일 입니다

pragma solidity ^0.4.17;
// linter warnings (red underline) about pragma version can igonored!

// contract code will go here


contract Inbox {
    string public message;
    function Inbox(string initialMessage) public {
        message = initialMessage;
    }
    function setMessage(string newMessage) public {
        message = newMessage;
    }
}

complie.js 파일입니다

// compile code will go here
const path = require('path');
const fs = require('fs');
const solc = require('solc');


const inboxPath = path.resolve(__dirname, 'contracts', 'Inbox.sol');
const source = fs.readFileSync(inboxPath, 'utf8');

console.log(solc.compile(source, 1))

터미널창에서 node compile.js 파일 입력하면

아래와 같은 내용이 출력된 것을 확인 할 수 있습니다

{
  contracts: {
    ':Inbox': {
      assembly: [Object],
      bytecode: '6060604052341561000f57600080fd5b60405161038e38038061038e833981016040528080519091019050600081805161003d929160200190610044565b50506100df565b828054600181600116156101000203166002900490600052602060002090601f016020900481019282601f1061008557805160ff19168380011785556100b2565b828001600101855582156100b2579182015b828111156100b2578251825591602001919060010190610097565b506100be9291506100c2565b5090565b6100dc91905b808211156100be57600081556001016100c8565b90565b6102a0806100ee6000396000f300606060405263ffffffff7c0100000000000000000000000000000000000000000000000000000000600035041663368b87728114610047578063e21f37ce1461009a57600080fd5b341561005257600080fd5b61009860046024813581810190830135806020601f8201819004810201604051908101604052818152929190602084018383808284375094965061012495505050505050565b005b34156100a557600080fd5b6100ad61013b565b60405160208082528190810183818151815260200191508051906020019080838360005b838110156100e95780820151838201526020016100d1565b50505050905090810190601f1680156101165780820380516001836020036101000a031916815260200191505b509250505060405180910390f35b60008180516101379291602001906101d9565b5050565b60008054600181600116156101000203166002900480601f0160208091040260200160405190810160405280929190818152602001828054600181600116156101000203166002900480156101d15780601f106101a6576101008083540402835291602001916101d1565b820191906000526020600020905b8154815290600101906020018083116101b457829003601f168201915b505050505081565b828054600181600116156101000203166002900490600052602060002090601f016020900481019282601f1061021a57805160ff1916838001178555610247565b82800160010185558215610247579182015b8281111561024757825182559160200191906001019061022c565b50610253929150610257565b5090565b61027191905b80821115610253576000815560010161025d565b905600a165627a7a72305820eb2943dc74e6e9311b31882e3907489062461f9876bb84867fbd13627562951a0029',
      functionHashes: [Object],
      gasEstimates: [Object],
      interface: '[{"constant":false,"inputs":[{"name":"newMessage","type":"string"}],"name":"setMessage","outputs":[],"payable":false,"stateMutability":"nonpayable","type":"function"},{"constant":true,"inputs":[],"name":"message","outputs":[{"name":"","type":"string"}],"payable":false,"stateMutability":"view","type":"function"},{"inputs":[{"name":"initialMessage","type":"string"}],"payable":false,"stateMutability":"nonpayable","type":"constructor"}]',
      metadata: '{"compiler":{"version":"0.4.17+commit.bdeb9e52"},"language":"Solidity","output":{"abi":[{"constant":false,"inputs":[{"name":"newMessage","type":"string"}],"name":"setMessage","outputs":[],"payable":false,"stateMutability":"nonpayable","type":"function"},{"constant":true,"inputs":[],"name":"message","outputs":[{"name":"","type":"string"}],"payable":false,"stateMutability":"view","type":"function"},{"inputs":[{"name":"initialMessage","type":"string"}],"payable":false,"stateMutability":"nonpayable","type":"constructor"}],"devdoc":{"methods":{}},"userdoc":{"methods":{}}},"settings":{"compilationTarget":{"":"Inbox"},"libraries":{},"optimizer":{"enabled":true,"runs":200},"remappings":[]},"sources":{"":{"keccak256":"0x8133be7801309a182591e36deead8212459575a430f8e3e2d99818b326344879","urls":["bzzr://7c24b79f2fe011d2bebabdaca13ab7afb3bd60fd29e4ae2dfa67e4452f3db738"]}},"version":1}',
      opcodes: 'PUSH1 0x60 PUSH1 0x40 MSTORE CALLVALUE ISZERO PUSH2 0xF JUMPI PUSH1 0x0 DUP1 REVERT JUMPDEST PUSH1 0x40 MLOAD PUSH2 0x38E CODESIZE SUB DUP1 PUSH2 0x38E DUP4 CODECOPY DUP2 ADD PUSH1 0x40 MSTORE DUP1 DUP1 MLOAD SWAP1 SWAP2 ADD SWAP1 POP PUSH1 0x0 DUP2 DUP1 MLOAD PUSH2 0x3D SWAP3 SWAP2 PUSH1 0x20 ADD SWAP1 PUSH2 0x44 JUMP JUMPDEST POP POP PUSH2 0xDF JUMP JUMPDEST DUP3 DUP1 SLOAD PUSH1 0x1 DUP2 PUSH1 0x1 AND ISZERO PUSH2 0x100 MUL SUB AND PUSH1 0x2 SWAP1 DIV SWAP1 PUSH1 0x0 MSTORE PUSH1 0x20 PUSH1 0x0 KECCAK256 SWAP1 PUSH1 0x1F ADD PUSH1 0x20 SWAP1 DIV DUP2 ADD SWAP3 DUP3 PUSH1 0x1F LT PUSH2 0x85 JUMPI DUP1 MLOAD PUSH1 0xFF NOT AND DUP4 DUP1 ADD OR DUP6 SSTORE PUSH2 0xB2 JUMP JUMPDEST DUP3 DUP1 ADD PUSH1 0x1 ADD DUP6 SSTORE DUP3 ISZERO PUSH2 0xB2 JUMPI SWAP2 DUP3 ADD JUMPDEST DUP3 DUP2 GT ISZERO PUSH2 0xB2 JUMPI DUP3 MLOAD DUP3 SSTORE SWAP2 PUSH1 0x20 ADD SWAP2 SWAP1 PUSH1 0x1 ADD SWAP1 PUSH2 0x97 JUMP JUMPDEST POP PUSH2 0xBE SWAP3 SWAP2 POP PUSH2 0xC2 JUMP JUMPDEST POP SWAP1 JUMP JUMPDEST PUSH2 0xDC SWAP2 SWAP1 JUMPDEST DUP1 DUP3 GT ISZERO PUSH2 0xBE JUMPI PUSH1 0x0 DUP2 SSTORE PUSH1 0x1 ADD PUSH2 0xC8 JUMP JUMPDEST SWAP1 JUMP JUMPDEST PUSH2 0x2A0 DUP1 PUSH2 0xEE PUSH1 0x0 CODECOPY PUSH1 0x0 RETURN STOP PUSH1 0x60 PUSH1 0x40 MSTORE PUSH4 0xFFFFFFFF PUSH29 0x100000000000000000000000000000000000000000000000000000000 PUSH1 0x0 CALLDATALOAD DIV AND PUSH4 0x368B8772 DUP2 EQ PUSH2 0x47 JUMPI DUP1 PUSH4 0xE21F37CE EQ PUSH2 0x9A JUMPI PUSH1 0x0 DUP1 REVERT JUMPDEST CALLVALUE ISZERO PUSH2 0x52 JUMPI PUSH1 0x0 DUP1 REVERT JUMPDEST PUSH2 0x98 PUSH1 0x4 PUSH1 0x24 DUP2 CALLDATALOAD DUP2 DUP2 ADD SWAP1 DUP4 ADD CALLDATALOAD DUP1 PUSH1 0x20 PUSH1 0x1F DUP3 ADD DUP2 SWAP1 DIV DUP2 MUL ADD PUSH1 0x40 MLOAD SWAP1 DUP2 ADD PUSH1 0x40 MSTORE DUP2 DUP2 MSTORE SWAP3 SWAP2 SWAP1 PUSH1 0x20 DUP5 ADD DUP4 DUP4 DUP1 DUP3 DUP5 CALLDATACOPY POP SWAP5 SWAP7 POP PUSH2 0x124 SWAP6 POP POP POP POP POP POP JUMP JUMPDEST STOP JUMPDEST CALLVALUE ISZERO PUSH2 0xA5 JUMPI PUSH1 0x0 DUP1 REVERT JUMPDEST PUSH2 0xAD PUSH2 0x13B JUMP JUMPDEST PUSH1 0x40 MLOAD PUSH1 0x20 DUP1 DUP3 MSTORE DUP2 SWAP1 DUP2 ADD DUP4 DUP2 DUP2 MLOAD DUP2 MSTORE PUSH1 0x20 ADD SWAP2 POP DUP1 MLOAD SWAP1 PUSH1 0x20 ADD SWAP1 DUP1 DUP4 DUP4 PUSH1 0x0 JUMPDEST DUP4 DUP2 LT ISZERO PUSH2 0xE9 JUMPI DUP1 DUP3 ADD MLOAD DUP4 DUP3 ADD MSTORE PUSH1 0x20 ADD PUSH2 0xD1 JUMP JUMPDEST POP POP POP POP SWAP1 POP SWAP1 DUP2 ADD SWAP1 PUSH1 0x1F AND DUP1 ISZERO PUSH2 0x116 JUMPI DUP1 DUP3 SUB DUP1 MLOAD PUSH1 0x1 DUP4 PUSH1 0x20 SUB PUSH2 0x100 EXP SUB NOT AND DUP2 MSTORE PUSH1 0x20 ADD SWAP2 POP JUMPDEST POP SWAP3 POP POP POP PUSH1 0x40 MLOAD DUP1 SWAP2 SUB SWAP1 RETURN JUMPDEST PUSH1 0x0 DUP2 DUP1 MLOAD PUSH2 0x137 SWAP3 SWAP2 PUSH1 0x20 ADD SWAP1 PUSH2 0x1D9 JUMP JUMPDEST POP POP JUMP JUMPDEST PUSH1 0x0 DUP1 SLOAD PUSH1 0x1 DUP2 PUSH1 0x1
AND ISZERO PUSH2 0x100 MUL SUB AND PUSH1 0x2 SWAP1 DIV DUP1 PUSH1 0x1F ADD PUSH1 0x20 DUP1 SWAP2 DIV MUL PUSH1 0x20 ADD PUSH1 0x40 MLOAD SWAP1 DUP2 ADD PUSH1 0x40 MSTORE DUP1 SWAP3 SWAP2 SWAP1 DUP2 DUP2 MSTORE PUSH1 0x20 ADD DUP3 DUP1 SLOAD PUSH1 0x1 DUP2 PUSH1 0x1 AND ISZERO PUSH2 0x100 MUL SUB AND PUSH1 0x2 SWAP1 DIV DUP1 ISZERO PUSH2 0x1D1 JUMPI DUP1 PUSH1 0x1F LT PUSH2 0x1A6 JUMPI PUSH2 0x100 DUP1 DUP4 SLOAD DIV MUL DUP4 MSTORE SWAP2 PUSH1 0x20 ADD SWAP2 PUSH2 0x1D1 JUMP JUMPDEST DUP3 ADD SWAP2 SWAP1 PUSH1 0x0 MSTORE PUSH1 0x20 PUSH1 0x0 KECCAK256 SWAP1 JUMPDEST DUP2 SLOAD DUP2 MSTORE SWAP1 PUSH1 0x1 ADD SWAP1 PUSH1
0x20 ADD DUP1 DUP4 GT PUSH2 0x1B4 JUMPI DUP3 SWAP1 SUB PUSH1 0x1F AND DUP3 ADD SWAP2 JUMPDEST POP POP POP POP POP DUP2 JUMP JUMPDEST DUP3 DUP1 SLOAD PUSH1 0x1 DUP2 PUSH1 0x1 AND ISZERO PUSH2 0x100 MUL SUB AND PUSH1 0x2 SWAP1 DIV SWAP1 PUSH1 0x0 MSTORE PUSH1 0x20 PUSH1 0x0 KECCAK256 SWAP1 PUSH1 0x1F ADD PUSH1 0x20 SWAP1 DIV DUP2 ADD SWAP3 DUP3 PUSH1 0x1F LT PUSH2 0x21A JUMPI DUP1 MLOAD PUSH1 0xFF NOT AND DUP4 DUP1 ADD OR DUP6 SSTORE PUSH2 0x247 JUMP JUMPDEST DUP3 DUP1 ADD PUSH1 0x1 ADD DUP6 SSTORE DUP3 ISZERO PUSH2 0x247 JUMPI SWAP2 DUP3 ADD JUMPDEST DUP3 DUP2 GT ISZERO PUSH2 0x247 JUMPI DUP3 MLOAD DUP3 SSTORE SWAP2 PUSH1 0x20 ADD SWAP2 SWAP1 PUSH1 0x1 ADD SWAP1 PUSH2 0x22C JUMP JUMPDEST POP PUSH2 0x253 SWAP3 SWAP2 POP PUSH2 0x257 JUMP JUMPDEST POP SWAP1 JUMP JUMPDEST PUSH2 0x271 SWAP2 SWAP1 JUMPDEST DUP1 DUP3 GT ISZERO PUSH2 0x253 JUMPI PUSH1 0x0 DUP2 SSTORE PUSH1 0x1 ADD PUSH2 0x25D JUMP JUMPDEST SWAP1 JUMP STOP LOG1 PUSH6 0x627A7A723058 KECCAK256 0xeb 0x29 NUMBER 0xdc PUSH21 0xE6E9311B31882E3907489062461F9876BB84867FBD SGT PUSH3 0x756295 BYTE STOP 0x29 ',
      runtimeBytecode: '606060405263ffffffff7c0100000000000000000000000000000000000000000000000000000000600035041663368b87728114610047578063e21f37ce1461009a57600080fd5b341561005257600080fd5b61009860046024813581810190830135806020601f8201819004810201604051908101604052818152929190602084018383808284375094965061012495505050505050565b005b34156100a557600080fd5b6100ad61013b565b60405160208082528190810183818151815260200191508051906020019080838360005b838110156100e95780820151838201526020016100d1565b50505050905090810190601f1680156101165780820380516001836020036101000a031916815260200191505b509250505060405180910390f35b60008180516101379291602001906101d9565b5050565b60008054600181600116156101000203166002900480601f0160208091040260200160405190810160405280929190818152602001828054600181600116156101000203166002900480156101d15780601f106101a6576101008083540402835291602001916101d1565b820191906000526020600020905b8154815290600101906020018083116101b457829003601f168201915b505050505081565b828054600181600116156101000203166002900490600052602060002090601f016020900481019282601f1061021a57805160ff1916838001178555610247565b82800160010185558215610247579182015b8281111561024757825182559160200191906001019061022c565b50610253929150610257565b5090565b61027191905b80821115610253576000815560010161025d565b905600a165627a7a72305820eb2943dc74e6e9311b31882e3907489062461f9876bb84867fbd13627562951a0029',
      srcmap: '128:224:0:-;;;176:86;;;;;;;;;;;;;;;;;;;;;;;;;;;;-1:-1:-1;231:7:0;176:86;;231:24;;;;;;;;:::i;:::-;;176:86;128:224;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;-1:-1:-1;128:224:0;;;-1:-1:-1;128:224:0;:::i;:::-;;;:::o;:::-;;;;;;;;;;;;;;;;;;;;:::o;:::-;;;;;;;',      srcmapRuntime: '128:224:0:-;;;;;;;;;;;;;;;;;;;;;;267:83;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;-1:-1:-1;267:83:0;;-1:-1:-1;267:83:0;;-1:-1:-1;;;;;;267:83:0;;;149:21;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;23:1:-1;8:100;33:3;30:1;27:2;8:100;;;99:1;94:3;90;84:5;71:3;;;64:6;52:2;45:3;8:100;;;12:14;3:109;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;267:83:0;323:7;333:10;;323:20;;;;;;;;:::i;:::-;;267:83;:::o;149:21::-;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;:::o;128:224::-;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;-1:-1:-1;128:224:0;;;-1:-1:-1;128:224:0;:::i;:::-;;;:::o;:::-;;;;;;;;;;;;;;;;;;;;:::o'
    }
  },
  sourceList: [ '' ],
  sources: { '': { AST: [Object] } }
}

객체에 대해서 설명하자면 객체 안에 계약 송이들이 있습니다. 계약은 여러가지 형태로 되어 있을 수 있습니다.

solidity compiler는 여러 계약이 한 번에 컴파일 될 수 있다는 가정하에 만들어졌습니다.

위에 코드같은 경우는 인박스 계약서만 있습니다. 하지만 동시에 통과시킨 다른 계약이 있다면 이 개체 안에서 키 값 쌍을 볼 수 있을 것에요

inferface 부분은 abi 는 계약 상에 존재하는 호출 될 수 있는 모든 함수를 나열합니다.

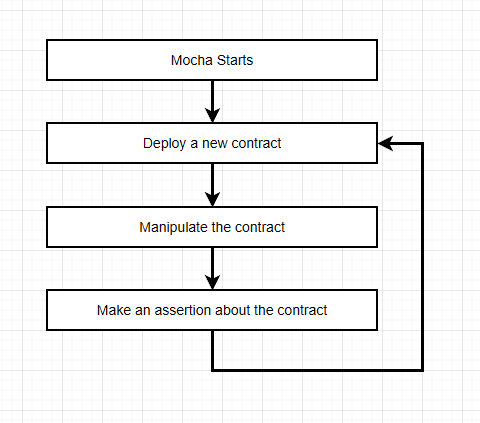

아래 그림은 테스트 하는 과정입니다.

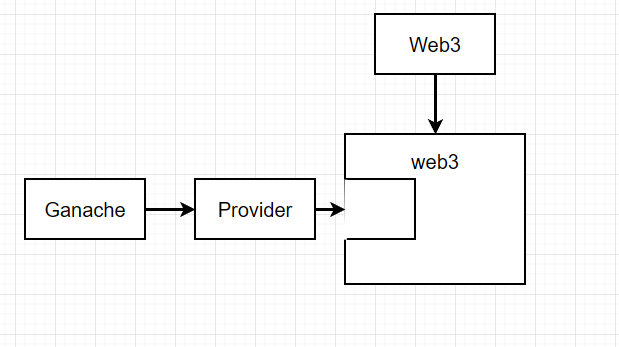

1. 웹 3 인스턴스를 만들 때마다 즉시 우리가 만든 새 인스턴스를 구성해야 해요

특히 공급자라는 걸 설정해야 해요

공급자는 웹 3 라이브러리와 특정 이더리움 네트워크 간의 통신 계층을 간주될 수 있쬬

여기 공급자가 있죠 이건 통신 계층이에요

다른 네트워크에 연결하기 위해 사용된 모든 공급자는 동일한 메서드 세트를 갖고 잇어요

이런 다양한 방법으로 웹 3 라이브러리는 로컬 네트워크에 요청을 보내고 그 요청에 대한 응답을 받죠

이더리움을 시험하기 위해 위에 그림과 같은 주기를 반복 합니다
